Experiment with snappyHexMesh

I have created a simple knotted sphere in Rhino. Snappy generates a perfect mesh now... I used the same snappyHexMeshDict as in previous meshing of my guppy.

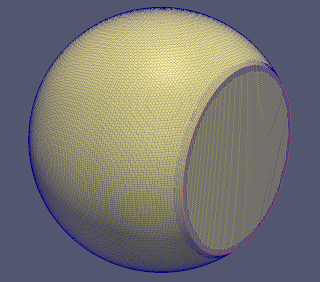

edge refinement at the cut

The red line is the edge for the Explicit feature edge refinement
Later I have done layer addition: 10 layers absolute thickness, expansion ratio 1.2. The result is not perfect to my lay eye.

The layer addition is not perfect
